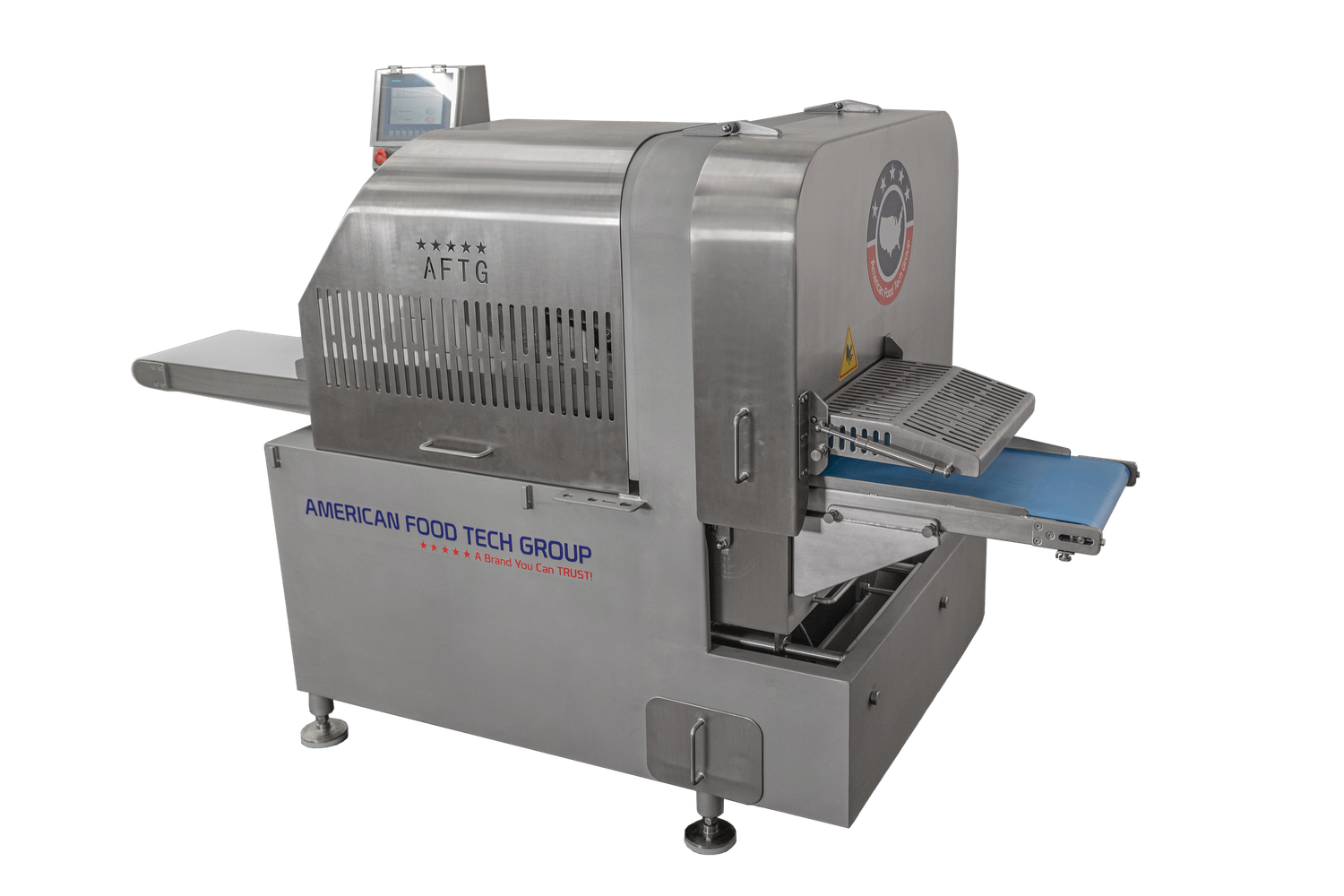

The AFTG CSD280 2D Dicer machine is ideal for precision cutting of dice, strips, and slices from a variety of meat products, including cold meat, fresh meat, cooked meat, poultry, fish, and mixed meat combinations. This machine effectively addresses the challenges associated with cutting and breaking cooked meat and combined products, ensuring superior cutting quality, versatility, and high production efficiency. The machine employs a double-knife slicing mechanism, with the disk knife set enabling efficient dicing, facilitating prompt product cutting and packaging.
Key Features:
Experience the efficiency and reliability of the AFTG CSD280 2D Dicer, a cutting-edge solution for your meat processing needs.
Type | CSD280 |
Dimension | 90" x 43" x 59" (2300*1100*1500mm) |
Voltage |
220/380V, 3ø, 50/60Hz.(Adjustable upon request) |
Product Temperature | 32~23°F (5~0℃) |
Belt width | 11.8" (300mm) |
Minimum Distance Between The Top Pusher Belt And Conveyor | 3mm |
Max. Product Height | 2.75" (70mm) |
Minimum Distance Between Round Blades | 0.19" (5mm) |
Production Capacity | 1500-2100Lbs (800-1000kg/h) |
Power | 3.0kw |
Weight | 1110Lbs (500kg) |
PRODUCTS AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCT IMAGES SHOWN ARE FOR ILLUSTRATION PURPOSES ONLY THE ACTUAL PRODUCT MAY VARY DUE TO PRODUCT ENHANCEMENT.
